Pavement Rehabilitation
Regardless of its initial quality, every pavement succumbs to the relentless pressures of traffic loads, environmental factors, material aging, and the insidious effects of poor drainage. Eventually, a critical point is reached where routine maintenance no longer suffices. At this juncture, the imperative isn't simply to act, but to act with informed precision.
For engineers, asset owners, and road authorities, some fundamental questions take precedence in pavement rehabilitation:
When do we intervene?
How do we rehabilitate this pavement to ensure enduring performance and value?
What works? and What doesn’t work
A common pitfall is overemphasising the "how", the immediate fix, without a comprehensive understanding of the optimal timing for intervention and whether the chosen strategy aligns with the underlying mechanisms of failure.
This exploration delves into both critical aspects: the science behind timely rehabilitation, the spectrum of effective engineering strategies at our disposal, and the frequently encountered missteps that can undermine even the most well-intentioned efforts. The pivotal question isn't solely how we rehabilitate, but perhaps even more importantly, when we choose to act.
Waiting for catastrophic failure is rarely the most economical or efficient approach. Instead, a proactive and data-driven strategy, guided by "when," helps us use the right "how" at the best time.
Understanding the Deterioration Curve
This begins to tackle the question of ‘when do we intervene?’.
Pavement deterioration isn't a linear process. It often follows an S-shaped curve. First, there is a slow decline. Then, it accelerates rapidly. Finally, it levels off at a very poor state. The key is intervening during the steep decline phase, before the pavement reaches a point where rehabilitation becomes prohibitively expensive and significantly less effective.
Credit: Manoj Jha
Determining the optimal time to act requires ongoing monitoring and analysis, forming the backbone of any strategic rehabilitation plan.
Diagnostic Precision & Material Intelligence for Proactive Triggering
Regular Non-Destructive Testing (NDT), such as Falling Weight Deflectometers (FWD) and Ground-Penetrating Radar (GPR), combined with laboratory testing, offers a longitudinal perspective on pavement health. Tracking KPIs like deflection, cracking, and roughness allows asset managers to identify the inflection point on the deterioration curve and schedule intervention at the most cost-effective moment.
Load & Environmental Modelling
Quantifying the effects of cumulative traffic loads (ESALs) and environmental conditions (e.g., moisture, temperature cycles) enables prediction of deterioration rates. This foresight allows for smarter planning, optimised intervention timing, and improved budgeting.
The Cost of Delay: Why Timing Matters
Delaying rehabilitation has compounding consequences:
Increased Rehabilitation Costs: Minor untreated issues escalate into deep structural failures requiring full-depth reconstruction.
Reduced User Satisfaction: Poor ride quality, safety concerns, and longer work zones from more extensive repairs.
Higher Vehicle Operating Costs: Rough surfaces increase fuel use and vehicle wear.
Safety Hazards: Advanced distress can create dangerous driving conditions.
Integrating "When" and "How" for Optimal Outcomes
The timing of intervention directly influences the treatment strategy. Early action may only require a surface treatment; delays may demand full structural rehabilitation. A well-informed timing strategy allows agencies to:
Implement cost-effective solutions
Maximise life extension
Minimise user disruption
Optimise infrastructure investment
📊 What Works: Proven Rehabilitation Strategies
With a clear diagnosis and understanding of distress mechanisms, selecting an appropriate method is critical. Here are strategies that have consistently delivered results:
🔁 Full-Depth Reclamation (FDR)
Credit: Roadtech - FDR
The preferred solution for pavements exhibiting severe structural distress, multiple existing overlays, or significant base failure. FDR involves recycling the entire existing pavement structure into a new, stabilised base (often using foamed bitumen or cement). This sustainable and cost-effective method effectively eliminates reflective cracking and is widely employed on rural freight corridors and lower-volume urban arterials.
💠 Thin vs. Thick Overlays
It is effective for addressing surface distress or moderate fatigue cracking. Thin overlays (30–50 mm) rejuvenate the pavement surface, mitigate oxidation, and improve rideability. Thick overlays(75–100 mm) are better suited for tackling mid-depth cracking and moderate structural loss. The success of overlays hinges on meticulous pre-treatment of existing cracks and ruts, proper application of a bond coat, and thorough surface preparation.
♻️ Cold and Hot In-Place Recycling (CIR & HIR)
Ideal for addressing moderate damage where the existing structural layers retain significant reusable material. CIR involves mixing recycled asphalt pavement on-site with stabilizing emulsions or foamed bitumen, while HIR reheats, rejuvenates, and recompacts the existing asphalt layer. These methods are particularly advantageous for network-level work on regional roads where minimizing haulage is a priority.
🌡️ Warm Mix Asphalt (WMA)
Credit: heidelbergmaterials - WMA
A valuable option for urban environments and environmentally sensitive areas. Produced at lower temperatures than conventional hot mix asphalt, WMA reduces emissions, improves workability, facilitates better compaction, lowers fuel consumption, and can extend haul distances.
🧵 Geosynthetics

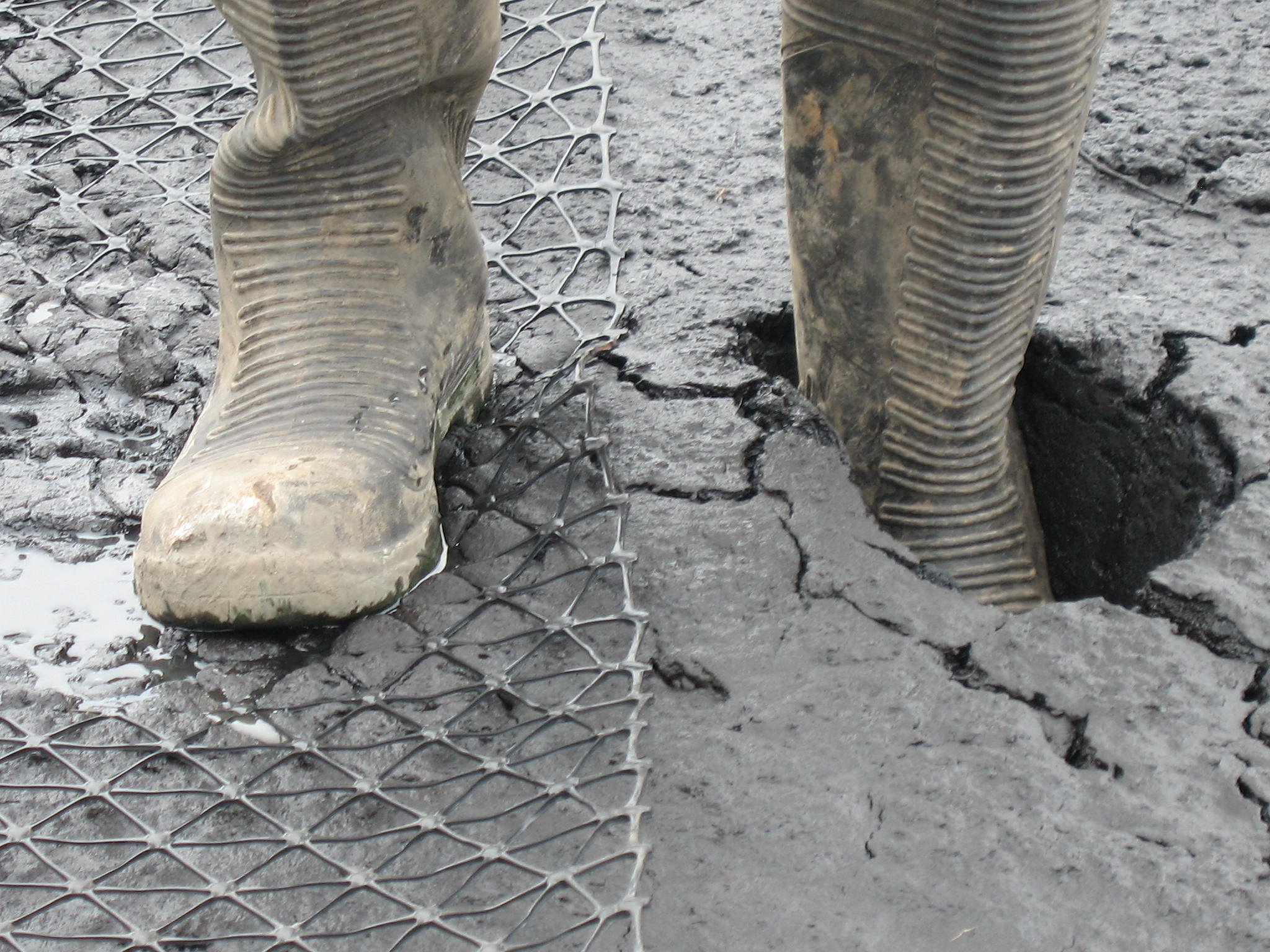

Credit: Tensarcorp
Geogrids and geotextiles offer effective solutions for pavements with weak subgrades, high moisture zones, or those prone to fatigue cracking. These materials help delay reflective cracking and improve load distribution, often used with overlays or CIR treatments.
🧪 Micro-Surfacing and Slurry Seals
These thin surface treatments are best suited for sound pavements exhibiting surface oxidation, ravelling, or minor cracking. They quickly extend service life with minimal disruption, providing enhanced skid resistance and sealing the pavement surface. They are particularly effective on urban collectors, low-volume roads, or as part of maintenance-deferral programs.
🔬 Proactive Management for Sustainable Pavements
Effective pavement rehabilitation is not just about having the right tools—it's about knowing when and how to apply them based on real data. A data-driven, mechanistic-empirical approach ensures the right strategy is used at the right time, extending pavement life and optimising public investment.
The "when" triggers the response, the "what" defines the treatment, and the "how" ensures its performance.
Together, they form the foundation of smarter, more sustainable pavement rehabilitation.
What Doesn’t Work — Avoiding Common Pitfalls
Even the most robust rehabilitation strategies can fail if misapplied or implemented without a thorough understanding of the underlying issues. Common pitfalls to avoid include:
Misdiagnosing distress: Treating structural failures with superficial surface overlays is a recipe for early failure.
Skipping thorough investigation: Without comprehensive testing (FWD, GPR, coring), rehabilitation efforts are based on guesswork, not engineering.
Ignoring environmental context: Failing to account for factors like freeze-thaw cycles, salinity, and high rainfall will lead to the selection of inappropriate treatments.
Applying treatments too late: Pavements that have deteriorated beyond a certain point may require full reconstruction rather than rehabilitation.
Compromising on quality: Using low-quality materials or accepting poor workmanship (e.g., weak bond coats, dusty surfaces, inadequate compaction) will undermine the long-term performance of any rehabilitation effort.
The example of a thick overlay failing prematurely on a rural road with deep base failure serves as a stark reminder that a visually appealing solution that ignores the underlying structural deficiencies is ultimately a costly failure.
Matching Strategy with Context
Every pavement is different: urban versus rural, coastal versus inland, high-speed freight versus light traffic. The best engineers know that the right strategy in the wrong context is still the wrong decision.
Rehabilitation planning must consider:
Traffic classification and axle repetitions
Moisture sensitivity and water table level
Existing layer thickness and residual strength
Budget constraints versus lifecycle cost
A $2M fix that lasts 15 years is better than a $1.5M fix that fails in 5.
🧠Conclusion: Embracing a Smart, Strategic Approach
Pavement rehabilitation is not a singular event but an ongoing process.
The when is dictated by performance modelling, risk assessment, and overall asset management strategy.
The how is defined by meticulous structural diagnosis, the application of mechanistic-empirical design principles, and a thorough understanding of material behaviour.
The what is the chosen rehabilitation strategy must be selected carefully, considering the specific distress type, environmental context, and budgetary constraints.
In an era of limited resources and increasing demands on our infrastructure, superficial fixes and mismatched solutions are no longer viable. The path forward lies in embracing an innovative, strategic approach to pavement rehabilitation – one characterised by precision, data-driven decision-making, and a commitment to long-term performance and value.
